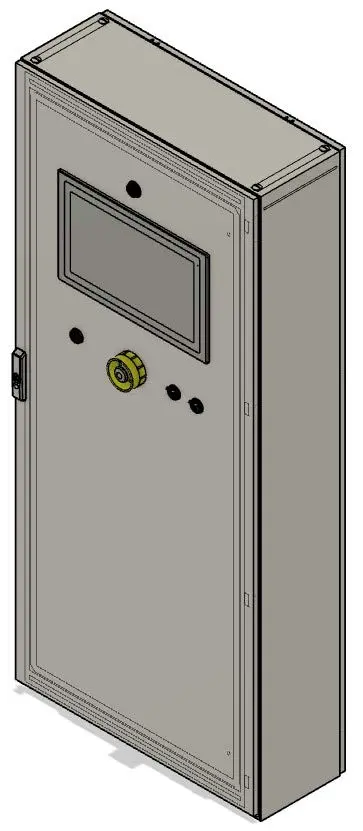

The InteliNeo 6000 Hybrid Microgrid Control panel offers:

Key Features:

• InteliNeo 6000 controller for renewable energy and BESS management.
•  InteliMains 1010 controller for utility mains protection and energy management.
•  InteliVision 18 Touch G2 HMI for local monitoring and control.
•  Integrated VPN Router / WiFi AP / Cellular modem provides an all-in-one solution for remote monitoring and local controller interfacing.
•  Shorting and fuse blocks included for seamless interface with BESS and Mains PT’s and CT’s.
•  432Wh Battery UPS allows control system to continue operating during control power failures.
•  Two 16 port ethernet switches provide adequate means of interfacing with many renewable assets and site networking configurations.
• Pilot relays for BESS and Utility circuit breaker control

Technical Data:

• Controllers:
  • InteliNeo 6000
  • InteliMains 1010
• Displays:
  •  InteliVision 18 Touch G2
  • InteliVision 10 Touch (optional)
• Communications:
  • ComAp InteliGateway 300
  • 2x 16 port unmanaged 10/100 ethernet switch
  • Teltonika 955/956 Integrated VPN Router / WiFi AP / Cellular modem
• Switches / Lamps / Relays
  • Alarm Horn
  • Alarm Silence button
  • Emergency Stop button
  • Mains controller USB port front panel
  • Microgrid controller USB port front panel
  • 3x 4PDT 6A relays
  • 3x 3PDT 10A relays
  • 7x SPDT 6A relays
• Power Supply:
  • 120vac 1250w
• Operating Conditions:
  • Operating Temperature -20c to 60c
  • Storage Temperature -30c to 70c
  • Indoor mounting only
