ComAp offers a wide range of options to connect to your controller:

• RS232 / RS485
• USB - USB A<->B (usually a printer cable)
• Internet connection - LAN, GPRS, 3G, 4G

Note that some connection types require you to use a communication module (plug-in eg a RS232 card) or communication bridge (external device eg Internet Bridge NT).

Each ComAp device usually allows for multiple ways of connection. The simplest one supported by the majority of our devices is the RS232 (serial) connection. For this, you need an RS232 cable (null modem) and if your PC is not equipped with an RS232 port you need a USB<->RS232 converter.
USB connections are very common. Almost all ComAp devices support connection using simple USB A<->B cable (printer cable) for easy configuration. Some devices can be powered from the USB port for programming to allow easy configuration right on your desk.
Other connection types: Internet connection (LAN, GPRS, 3G, 4G), Modbus RTU, Modbus TCP, SNMP, AirGate, Modem.
Note that some connection types require you to use a communication module (plug-in eg a RS232 card) or communication bridge (external device eg Internet Bridge NT). Not all types of connection are possible on each device. You can find all the details related to this topic in your device's Comprehensive guide or Communication guide.

Detailed information about connection to:
InteliLite NT, InteliATS NT, InteliCompact NT is available IL-NT, IA-NT, IC-NT Communication Guide (page 21)
InteliGen-NT, InteliSys-NT, InteliMains-NT is available in IGS-NT Communication Guide (page 19)
InteliLite is available in Global Guide InteliLite AMF25 Global Guide (page 126)



Usually connecting to the controller over the internet is straightforward and works out of the box. However, there are a few parameters that need to be set correctly.


• Make sure you have the latest firmware in the controller itself but also in all the communication modules (plug-in, built-in or external).
  • Communication modules that supports connection via the internet
    • CM-4G-GPS
    • CM-Ethernet
    • CM-GPRS
    • InternetBridge-NT 4G
    • InternetBridge-NT
    • IB-Lite
    • IB-COM (Built-in communication module for NTC controllers)
    • IL-NT GPRS



• Ensure the communication interface is configured correctly.
  • CM-4G-GPS, CM-Ethernet, CM-GPRS - Can be set in the controllers setpoints on the unit itself or using InteliConfig configuration software.
  • IB-COM, IB-Lite - Use web interface -  just connect to http://<controller-ip-address>/sp_index.htm using your favourite web browser.
  • InternetBridge-NT 4G, InternetBridge-NT - Requires a software tool called IBNTConfig(https://www.comap-control.com/products/detail/ib-nt-config) and an USB A<->B cable for configuration. This way you can also enable MODBUS, SNMP etc.



• Make sure there is no firewall blocking your connection. Consult your IT specialist or ISP if not sure. If you use a firewall, make sure the following ports are open for communication:
  • The device must be able to send data to the AirGate server at UDP port 6127 and TCP port 23. The TCP port can be changed in the module setup to 21 if needed.
  • TCP port 44445 is required for WebSupervisor connection.
  • Port 80 is used for accessing the communication module web interface.
  • Port 502 is used for Modbus TCP communication (enabled by default).
  • Port 161 is used for SNMP (needs to be enabled).

You can download the latest firmware package on the webpage of the device. You can easily navigate there through the ‘Products’ section or just use the Search function. If you cannot find the firmware on the website or if you require different than the offered version do not hesitate to contact our support team.

The firmware upgrade itself is easy to perform. You need the appropriate configuration software and a connection to the controller (preferably a direct connection). Prior to initiating the update process, we strongly recommend you to save a complete backup of your device.

It usually consists of several steps:

• Create a controller back up.
• Update the device firmware. It will contain default Configuration Archive and default Application.
• Change the Application (SPtM, MiNT, MCB, MGCB, BTB, etc) to the required type (by programming appropriate default archive to the controller).
• Use the Import Configuration Wizard to restore your previous configuration. In some cases manual interventions might be needed during this step.
• Optional: Update the connected display firmware or device communication module firmware.

Should you be unsuccessful in programming the new version, the rollback procedure is to install previous firmware version and use your back up to restore the controller to its original state before the firmware upgrade was attempted.

AirGate  allows our controllers to connect to the internet using existing network infrastructure, negotiating firewalls and VPN systems and removing the requirement for static and public IP addresses.

ComAp controls incorporate the AirGate connection technology to make access to the internet as simple as possible. AirGate was designed to overcome the issues commonly faced when trying to connect remote equipment using internet based communications.

AirGate allows our controllers to connect to the internet using the existing network infrastructure, negotiating firewalls and VPN systems and removing the requirement for static and public IP addresses.

Once AirGate in the controller is activated even if the IP address is changed, our configuration and monitoring tools will keep track of the remote equipment.

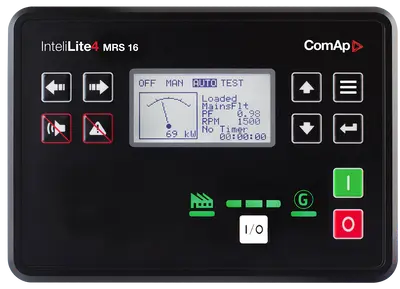

Yes, there is a remote display firmware option for the new InteliLite family and InteliGen4 200 available. You can find details on its product page.

You can find it as an option in the InteliConfig to have it installed into InteliLite controller and connect over RS232 or RS485 plug-in module with the master controller. The master controller and the controller that is used for as a remote display do not have to be the same HW. (e.g. InteliLite 9 can be used as remote display for InteliGen 200).
